CS80 MIDI RETROFIT UPDATE
Powerd by
Last modified 13th Dec '98.

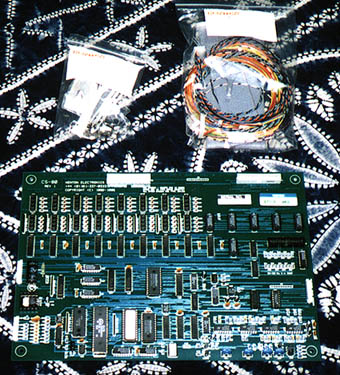

The CS80 MIDI retrofit kit.

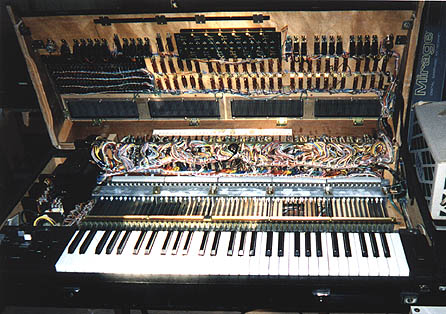

The opened CS80. |
Kenton Electronics said.. |

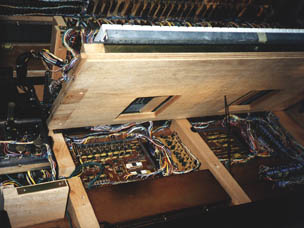

Lift up the keyboard. it very heavy! |

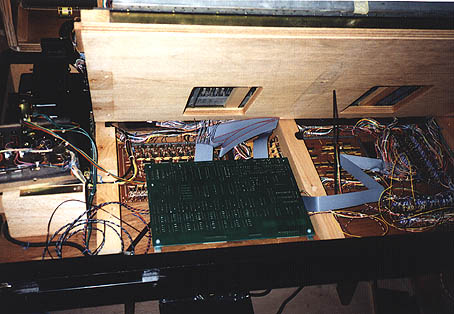

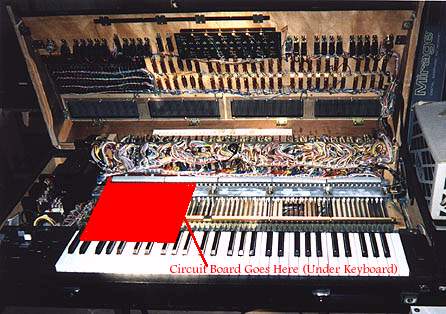

Checking the position of MIDI board. |

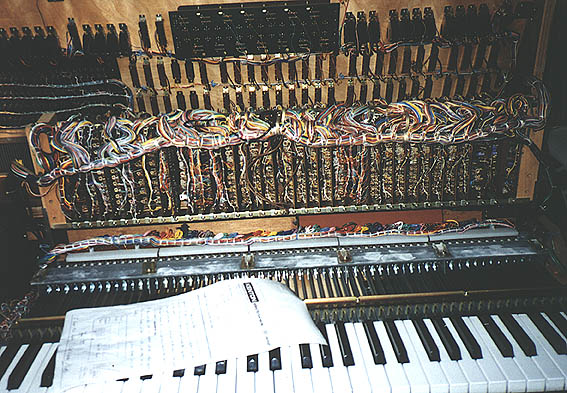

So many Voice cards and wires!! But it not solder to voice cards per each,it solder to Key assingner.

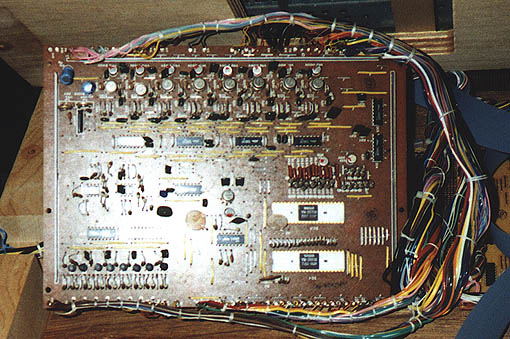

2 white 40 pins ICs are Key Assigner ICs.It Yamaha custom made, no longer available. |

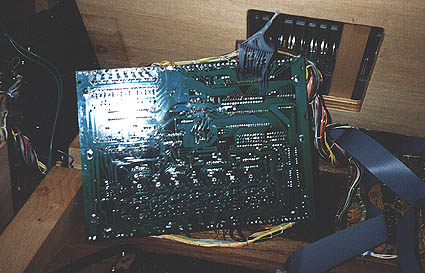

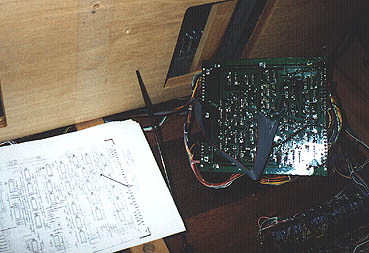

Solder it.Carefully! |
Also solder to another one board. |

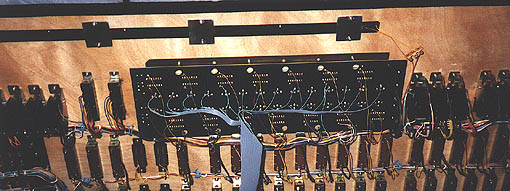

And solder to tone Selector. |
And solder to PSU, other some wires and MIDI jacks.
FINALLY, COMPLETE!
Receive MIDI details:
Note on/off,Omni on/off,Program change,Pitch bend,Mod wheel,After touch(mono or poly),
Velocity (VCF or VCA),Volume,Portament on/off,Sustain etc...COOL!!
Dear KENTON,Thank you so much!
If you are owner of CS80 MIDI,please mail me.
Listen the MIDIfyed CS80 sounds!
Last update 8.Nov.99
